Foundation Reinforcement and Strengthening for Existing Houses: Methods and Technologies

The foundation represents the most critical structural element of any building, bearing the entire load and transferring it safely to the underlying soil. Over time, even well-constructed foundations can experience deterioration, settlement, or loss of bearing capacity due to various factors. Foundation reinforcement becomes an essential intervention when homeowners notice warning signs such as wall cracks, uneven floors, or structural instability. Understanding the available methods and technologies for strengthening existing foundations empowers property owners to make informed decisions about protecting their most significant investment.

Understanding When Foundation Reinforcement Becomes Necessary

Foundation problems rarely appear suddenly. Instead, they develop gradually through a complex interaction between structural loads, soil conditions, water infiltration, and environmental factors. Recognizing the early signs of foundation distress allows for timely intervention before minor issues escalate into major structural failures requiring extensive and costly repairs.

Soil settlement beneath the foundation often initiates a cascade of structural problems throughout the building. Clay-rich soils expand when saturated with moisture and contract during dry periods, creating cyclical movement that stresses foundation elements. Sandy soils may experience erosion or consolidation under sustained loading, particularly when groundwater levels fluctuate seasonally. The phenomenon of differential settlement occurs when different portions of the foundation move at varying rates, inducing shear forces and bending moments that the original design may not have anticipated.

Increased loading represents another common reason for foundation reinforcement. Homeowners who add second stories, install heavy equipment, or significantly increase occupancy loads may exceed the original design capacity of their foundations. Building code requirements have also evolved over decades, and older structures may not meet current safety standards for seismic resistance or wind loads. Adaptive reuse projects that convert residential buildings to commercial purposes frequently require foundation upgrades to accommodate higher floor loads and different usage patterns.

Water damage progressively weakens foundation materials through multiple mechanisms. Concrete subjected to repeated freeze-thaw cycles develops microcracking that allows deeper moisture penetration and accelerates deterioration. Masonry foundations constructed with lime mortar gradually lose bonding strength as water dissolves binding compounds. Steel reinforcement within concrete corrodes when exposed to moisture and chlorides, expanding and causing concrete spalling. Hydraulic pressure from rising groundwater can destabilize soil beneath foundations and create uplift forces that compromise structural stability.

Adjacent construction activities introduce external forces that existing foundations must resist. Excavation for neighboring basement construction removes lateral soil support and may trigger foundation movement. Pile driving operations generate vibrations that densify loose soils and cause settlement of nearby structures. Dewatering operations lower groundwater tables and consolidate compressible soil layers, inducing settlement across wide areas. Modern foundation reinforcement techniques must address these external influences while maintaining the structural integrity of occupied buildings.

Diagnostic Assessment Before Beginning Reinforcement Work

Successful foundation reinforcement begins with comprehensive diagnostic evaluation that identifies root causes rather than merely treating visible symptoms. Professional structural engineers employ systematic investigation protocols that combine visual inspection, geotechnical testing, and structural analysis to develop effective remediation strategies tailored to specific conditions.

Visual documentation provides the foundation for understanding distress patterns and their progression over time. Engineers photograph and measure crack widths, noting their orientation, location, and characteristics. Vertical cracks often indicate settlement or thermal movement, while diagonal cracks suggest differential settlement or shear distress. Horizontal cracks in basement walls typically result from lateral soil pressure, whereas stepped cracking in masonry follows mortar joints and indicates foundation movement. Installing crack monitoring gauges allows engineers to determine whether movements remain active or have stabilized, informing decisions about intervention urgency and appropriate reinforcement methods.

Geotechnical investigation reveals subsurface conditions that influence foundation behavior and guide reinforcement design. Exploratory borings retrieve soil samples for laboratory testing that measures bearing capacity, consolidation characteristics, and shear strength parameters. Standard penetration testing determines soil density and consistency at various depths, identifying weak layers that may require treatment. Cone penetration testing provides continuous profiles of soil resistance, revealing thin compressible strata that conventional boring might miss. Groundwater monitoring wells track seasonal fluctuations and identify perched water tables that contribute to foundation problems.

Structural load analysis quantifies forces acting on foundations and evaluates capacity relative to demand. Engineers document building dimensions, construction materials, and floor systems to calculate dead loads from permanent structural elements. Reviewing building usage patterns and equipment installations establishes live load magnitudes. Structural drawings, when available, reveal original design assumptions and allow comparison with current conditions. Load testing using hydraulic jacks or vibration monitoring can directly measure foundation response under controlled loading conditions, validating analytical predictions.

Foundation exposure through selective excavation allows direct examination of below-grade conditions that visual inspection cannot assess. Test pits reveal foundation depth, footing dimensions, and construction quality. Excavation exposes deterioration from water damage, material defects, or inadequate original construction. Concrete cores extracted from foundation elements undergo compressive strength testing to verify material properties. This empirical data replaces assumptions with measured values, increasing confidence in reinforcement designs.

Injection Grouting Methods for Foundation Strengthening

Injection grouting represents one of the most versatile and minimally invasive techniques for foundation reinforcement, introducing binding materials directly into voids, cracks, and porous zones without extensive excavation or structural demolition. This technology proves particularly effective for masonry and concrete foundations where internal deterioration compromises load-bearing capacity while external surfaces remain relatively intact.

Cement grouting forms the traditional foundation for injection reinforcement applications. Engineers drill access holes through foundation walls at predetermined locations, typically spaced between eighteen and thirty-six inches depending on void size and material porosity. Packers installed in these holes create sealed injection points that withstand grout pressures ranging from fifty to two hundred pounds per square inch. Low-viscosity cement slurries penetrate fine cracks and consolidate loose masonry, while thicker mixes fill larger voids and fractured zones. The grouting sequence proceeds systematically from lowest to highest elevations, allowing gravity to assist material flow and prevent air pocket formation. Multiple injection passes may prove necessary for severely deteriorated foundations where initial grout applications reveal additional voids as material consolidates.

Chemical grouting employs specialized polymers and resins that offer advantages over traditional cement in specific applications. Polyurethane foams expand within voids, exerting controlled pressure that can lift settled foundations while simultaneously filling void space. Epoxy resins provide exceptional bonding strength and waterproofing characteristics, sealing cracks that allow water infiltration. Acrylic gels penetrate extremely fine fissures inaccessible to cement grouts, creating comprehensive sealing of deteriorated masonry. These chemical systems cure rapidly, allowing grouted structures to bear loads within hours rather than days required for cement hydration. However, chemical grouts typically cost significantly more than cement-based alternatives and require careful mixing and application to achieve specified properties.

Compaction grouting addresses foundation problems caused by loose or compressible soils rather than deteriorated foundation materials themselves. This technique pumps extremely stiff grout mixtures at high pressure through casing advanced into weak soil zones beneath foundations. The grout forms bulbs that displace and densify surrounding soil rather than permeating through pore spaces. Successive grout injections create overlapping treatment zones that strengthen bearing soils and reduce settlement potential. Monitoring systems track foundation elevation during grouting operations, allowing controlled lifting of settled structures when combined with soil densification. Compaction grouting proves particularly effective for correcting settlement caused by poorly compacted fill or collapsible soil types.

Jet grouting combines high-velocity fluid jets with grout injection to create columns of soil-cement composite material that reinforce foundations and underlying soils. Rotating monitor systems cut and mix soil with cement slurry, producing cylindrical zones with diameters ranging from two to six feet depending on soil type and jetting parameters. These columns can extend to depths exceeding one hundred feet, reaching competent bearing strata far below foundation level. Overlapping jet grout columns form continuous walls or grids that control groundwater, increase bearing capacity, and transfer loads to deeper soil layers. Though more expensive than conventional grouting, jet grouting offers unmatched versatility for complex foundation problems in challenging soil conditions.

Concrete Jacketing and Structural Reinforcement Systems

Concrete jacketing provides a robust method for increasing foundation size, improving material quality, and restoring structural capacity through addition of new reinforced concrete elements that work compositely with existing foundations. This approach suits situations where foundation deterioration affects exterior surfaces or where increased bearing area becomes necessary to distribute higher loads across larger soil volumes.

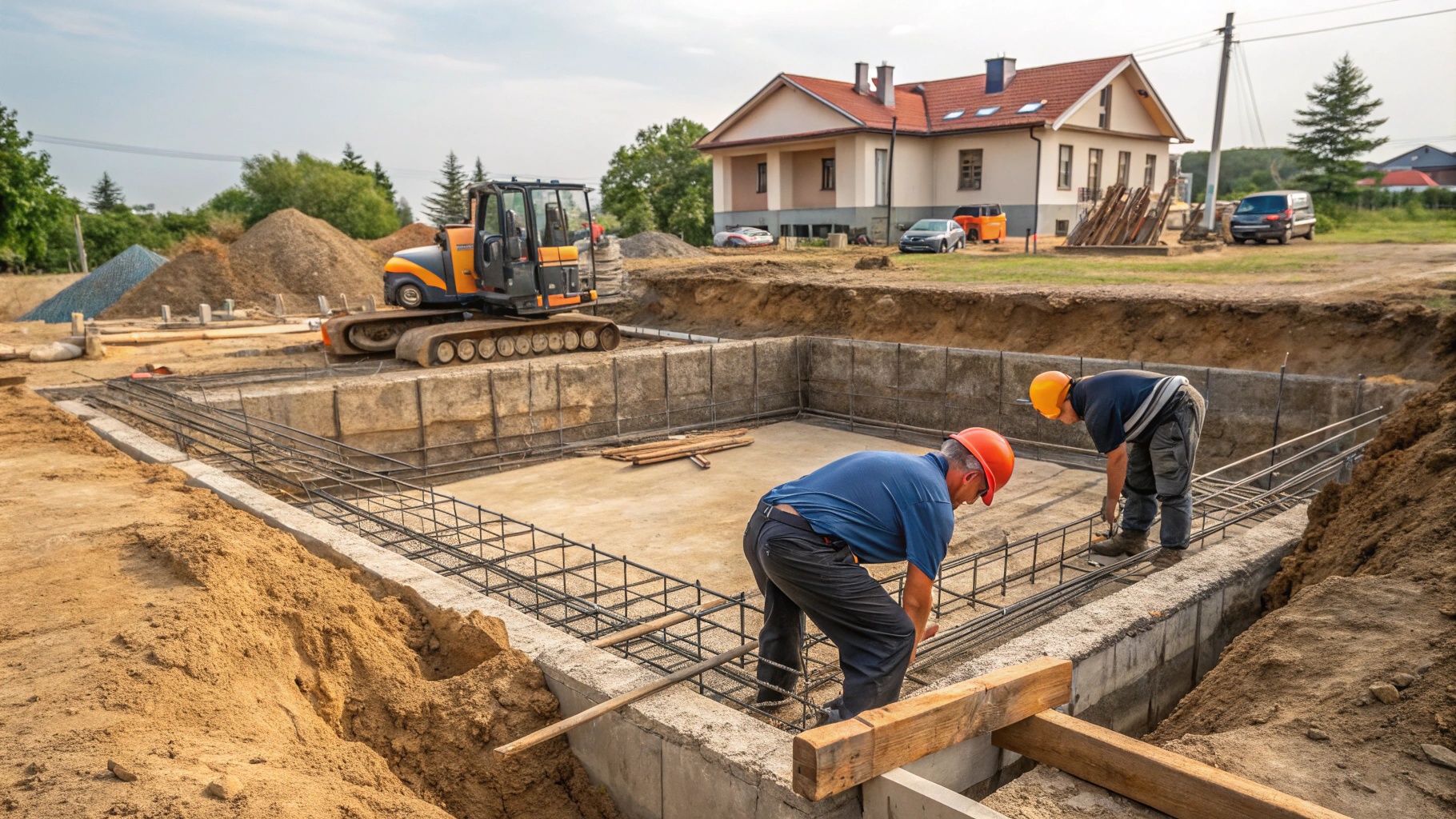

Foundation enlargement through concrete jacketing begins with systematic excavation to expose existing foundation walls and footings. Workers remove soil in manageable segments, typically six to ten feet in length, maintaining soil support for adjacent sections while work proceeds. Surface preparation proves critical for achieving composite action between old and new concrete. Wire brushing or light sandblasting removes deteriorated material, dirt, and loose particles. Mechanical roughening creates surface texture that enhances bonding. Epoxy bonding agents applied to prepared surfaces chemically link new concrete to existing substrates, developing shear transfer capacity that allows the jacketed assembly to function as a unified structural element.

Reinforcement design balances structural requirements against constructability constraints in confined excavations. Vertical steel bars anchor into existing foundations through drilled and grouted dowels, establishing continuity between old and new elements. Horizontal reinforcement surrounds foundation perimeters, providing flexural strength to resist soil pressures and foundation loads. Reinforcement must clear existing foundation surfaces by minimum distances that ensure proper concrete cover for corrosion protection and fire resistance. Splicing and development lengths receive particular attention in congested reinforcement zones where multiple bar layers intersect. Proper reinforcement placement requires patience and precision in tight working spaces where movement and visibility face limitations.

Concrete placement techniques adapt to restricted access and working conditions typical of foundation excavations. Small bucket deliveries allow careful filling of narrow forms between existing foundations and excavation faces. Internal vibration consolidates concrete around reinforcement and removes entrapped air, though confined spaces limit vibrator access and placement patterns. Self-consolidating concrete formulations eliminate vibration requirements and flow readily through congested reinforcement, though higher costs and special handling requirements limit widespread adoption. Curing procedures maintain adequate moisture and temperature conditions that allow cement hydration to develop design strength. Cold weather protection prevents freezing that disrupts hydration reactions, while hot weather precautions prevent rapid moisture loss that causes shrinkage cracking.

Staged construction sequences maintain building stability throughout jacketing operations. Shoring systems temporarily support foundation loads during excavation and concrete placement. Underpinning techniques transfer loads to temporary supports, allowing removal of deteriorated foundation sections for replacement or jacketing. Monitoring programs track building movement during construction, alerting engineers to unexpected responses that might require design modifications. Systematic progression around building perimeters ensures that adequate support always remains available, preventing additional damage during remediation efforts intended to improve structural safety.

Underpinning with Deep Foundation Elements

Underpinning transfers building loads from shallow foundations bearing on weak or unstable soils to deeper, more competent bearing strata through installation of new deep foundation elements such as piles or piers. This fundamental approach addresses foundation problems rooted in inadequate soil support rather than deficiencies in foundation structural elements themselves.

Micropiles represent modern underpinning technology particularly suited to retrofit applications in existing buildings. These small-diameter drilled and grouted elements, typically ranging from five to twelve inches in diameter, can be installed in low-headroom conditions using compact drilling equipment that accesses confined spaces. Drilling proceeds through existing foundations and weak surface soils until reaching competent bedrock or dense soil layers capable of supporting design loads. High-strength steel casing or reinforcement bar assemblies provide structural capacity, while high-pressure cement grouting bonds steel elements to surrounding soil and rock. Individual micropile capacities range from fifty to three hundred tons depending on diameter, rock socket depth, and steel reinforcement details.

Installation sequencing prevents overstressing existing foundations during the underpinning process. Engineers establish loading patterns that maintain equilibrium and prevent additional settlement as new support elements become operational. Hydraulic jacks positioned between pile caps and existing foundations allow controlled load transfer, gradually shifting weight from original shallow foundations to new deep elements. Monitoring instruments track foundation elevations and structural stress levels throughout loading operations, providing real-time feedback that guides adjustments to jacking pressures and loading rates. Some underpinning projects deliberately raise settled foundations to original elevations during load transfer, though this aggressive approach requires careful structural evaluation to ensure building components can tolerate induced movements.

Helical piles offer mechanical installation advantages that prove valuable in certain underpinning scenarios. Factory-manufactured steel shafts with helical bearing plates attach to hydraulic drive units that apply both downward force and rotation, advancing piles through soil layers. Torque monitoring during installation provides continuous capacity verification through empirical correlations between installation resistance and pile capacity. Helical piles minimize vibration and soil disturbance compared to driven pile alternatives, reducing risk to adjacent structures and utilities. Immediate loading capability eliminates delays associated with concrete curing, potentially accelerating project schedules. However, helical piles encounter limitations in very dense soils or weathered rock conditions that resist mechanical advancement.

Drilled shaft foundations, also called caissons, provide maximum load capacity for heavy structures requiring substantial underpinning support. Large-diameter shafts ranging from twenty-four to ninety-six inches accommodate high axial and lateral loads through end bearing on rock or dense soil and side friction along shaft lengths. Excavation techniques vary with soil conditions, employing dry drilling in stable soils above groundwater and slurry or casing support methods in caving or water-bearing formations. Reinforcing steel cages spanning shaft depths provide structural capacity and ductility for seismic resistance. Concrete placement through tremie pipes prevents segregation and ensures complete filling of shaft excavations. Though more expensive and time-consuming than alternative underpinning methods, drilled shafts offer unmatched capacity and versatility for demanding foundation problems.

Modern Technologies and Future Developments in Foundation Repair

Innovation continues advancing foundation reinforcement capabilities through development of new materials, construction methods, and monitoring technologies that improve effectiveness while reducing costs and construction impacts. These emerging approaches promise enhanced solutions for increasingly complex foundation problems encountered in aging building stocks and challenging environmental conditions.

Fiber-reinforced polymer systems bring aerospace materials technology to foundation engineering applications. Carbon and glass fiber fabrics bonded to foundation surfaces with epoxy resins provide tensile reinforcement that controls cracking and increases flexural capacity. These lightweight materials prove particularly valuable where access limitations prevent conventional reinforcement installation. Prefabricated FRP shapes including rods, strips, and grids integrate into repair mortars and concrete overlays, enhancing durability and structural performance. Though material costs exceed traditional steel reinforcement, FRP systems offer corrosion resistance that eliminates long-term maintenance concerns and extends service life in aggressive environments.

Ground freezing technology creates temporary earth support during foundation excavation and underpinning operations. Circulating refrigerated brine through pipes installed in soil formations converts groundwater to ice, bonding soil particles into frozen masses with substantial strength and stiffness. This temporary support allows excavation in unstable conditions without permanent ground improvement installations. After completing foundation work, gradual thawing restores natural soil conditions without residual ground improvement materials. Though expensive and technically demanding, ground freezing enables foundation work in challenging scenarios including high groundwater, contaminated soils, and locations where other support methods prove impractical.

Building information modeling extends beyond new construction to support foundation evaluation and repair planning. Laser scanning captures precise three-dimensional geometry of existing structures, creating accurate digital models that facilitate design development and construction planning. Subsurface modeling integrates geotechnical data into comprehensive site representations showing foundation elements, soil stratigraphy, and utility locations. Augmented reality applications overlay digital design information onto physical construction sites, improving field coordination and reducing errors during complex foundation work. Data-rich models support lifecycle management and future maintenance planning, preserving institutional knowledge about foundation conditions and repair histories.

Remote sensing and monitoring technologies provide unprecedented insight into foundation behavior and performance. Distributed fiber optic sensors embedded in foundations measure strain and temperature along continuous cable lengths, detecting localized distress before visible damage appears. Wireless sensor networks track foundation movement, groundwater fluctuations, and structural loads with minimal installation disruption. Satellite-based interferometric synthetic aperture radar monitors ground settlement across wide areas with millimeter accuracy, identifying regional subsidence trends that threaten foundation stability. These monitoring capabilities support proactive maintenance strategies that address emerging problems before expensive emergency repairs become necessary.

The table below presents typical characteristics and applications of major foundation reinforcement methods discussed throughout this article.

Foundation reinforcement duration and scheduling considerations significantly influence project planning and homeowner disruption levels.

Selecting Appropriate Reinforcement Strategies for Specific Conditions

Foundation reinforcement success depends critically on matching selected methods to specific site conditions, building characteristics, and performance objectives. Engineers must balance technical effectiveness, construction feasibility, schedule constraints, and budget limitations while maintaining appropriate safety margins and regulatory compliance.

Soil characteristics fundamentally influence reinforcement method selection and design parameters. Cohesive clay soils provide reliable support for underpinning operations and respond well to grouting techniques that fill voids and consolidate weak zones. Granular soils including sands and gravels typically require different approaches, with compaction grouting and deep foundations proving more effective than void-filling techniques. Organic soils and recent fill materials generally possess inadequate bearing capacity for any shallow foundation system, necessitating deep foundation solutions that penetrate to competent bearing strata. Expansive clay soils that swell and shrink with moisture changes require special attention to moisture control and often benefit from isolation techniques that separate foundations from active soil zones.

Building configuration and structural systems constrain reinforcement options through geometric and loading considerations. Closely-spaced interior columns concentrating heavy loads require substantial underpinning capacity but may limit equipment access for large-diameter foundation installations. Continuous perimeter walls distribute relatively uniform loads but extend over considerable distances, increasing total reinforcement costs. Historic buildings with unreinforced masonry walls tolerate minimal movement during underpinning operations and may require extensive temporary shoring to prevent damage. Modern structures with reinforced concrete frames generally accommodate moderate movements without distress and permit more aggressive underpinning sequences that reduce project duration and costs.

Budget constraints often determine which technically viable alternatives receive serious consideration for specific projects. Property owners must understand that foundation repairs represent significant investments, with comprehensive reinforcement programs easily exceeding substantial portions of building values for severely compromised structures. Phased approaches spread costs over multiple construction seasons, though this strategy risks allowing foundation problems to worsen between phases. Value engineering exercises identify opportunities to reduce costs without compromising performance, perhaps through alternative materials, modified construction sequences, or reduced design factors where conditions permit. However, inadequate foundation repairs that fail to address root causes merely postpone inevitable problems while wasting initial investment, making thorough solutions preferable despite higher upfront costs.

Permit requirements and regulatory oversight vary considerably among jurisdictions and project scopes, affecting reinforcement planning and execution. Major structural modifications including foundation additions typically require building permits and design review by local authorities. Historic preservation regulations may limit available reinforcement options or mandate specific materials and methods compatible with original construction. Environmental regulations govern soil disposal, groundwater discharge, and stormwater management during excavation activities. Securing necessary permits before commencing work prevents costly construction delays and potential legal complications, though permit processing extends overall project schedules and adds soft costs to foundation repair budgets.

Long-Term Performance and Maintenance Considerations

Foundation reinforcement projects represent substantial investments intended to provide decades of reliable service and protect building values over extended time horizons. Ensuring this long-term performance requires attention to durability, monitoring, and maintenance beyond initial construction quality.

Material durability directly influences reinforcement longevity and lifecycle costs. Concrete exposed to freeze-thaw cycles requires adequate air entrainment and low permeability to resist scaling and cracking. Steel reinforcement needs sufficient concrete cover and corrosion inhibitors in aggressive soil conditions. Timber components in foundation systems demand pressure preservative treatment appropriate for ground contact applications. Epoxies and polymers in injection grouting and FRP reinforcement must resist degradation from moisture, temperature extremes, and chemical exposure encountered in below-grade environments. Specifying durable materials initially costs more than economy alternatives but eliminates premature deterioration that requires expensive remediation.

Moisture management remains critical for foundation performance throughout building service lives. Surface grading directs rainfall away from foundations, preventing concentrated water infiltration adjacent to walls. Gutter and downspout systems collect roof runoff and discharge it beyond building perimeters, minimizing water accumulation near foundations. Subsurface drainage systems including perimeter drains and sump pumps control groundwater levels and prevent hydrostatic pressure buildup against foundation walls. Regular inspection and maintenance of these water management systems prevents minor deficiencies from escalating into major moisture problems that threaten foundation integrity. Property owners who neglect drainage maintenance undermine even excellent foundation reinforcement, allowing renewed deterioration despite significant investment in structural improvements.

Periodic professional inspections identify emerging problems before they require emergency intervention. Structural engineers trained in foundation assessment should examine reinforced foundations every three to five years, looking for new cracks, movement patterns, or deterioration that might indicate developing problems. More frequent inspections prove warranted for foundations in challenging soil conditions or buildings subjected to unusual loads or vibrations. Inspection reports document current conditions and provide baseline information for detecting future changes. This proactive approach catches small problems while they remain manageable and inexpensive to correct, avoiding catastrophic failures that endanger occupants and require extensive emergency repairs.

Documentation of reinforcement design, construction, and performance creates valuable records supporting future building maintenance and potential modifications. Detailed construction drawings show reinforcement locations, materials, and design assumptions. Construction photographs document as-built conditions and installation quality. Geotechnical reports provide soil properties and testing results informing future foundation work. Organizing this information in accessible formats allows future engineers to understand existing conditions without expensive re-investigation. Property transfers should include foundation documentation, informing new owners about past problems and completed repairs. This institutional knowledge prevents repeated mistakes and supports informed decision-making when additional foundation work becomes necessary.

Foundation reinforcement represents sophisticated engineering that combines theoretical understanding of soil mechanics and structural behavior with practical construction experience and judgment. Successful projects require careful planning, thorough investigation, appropriate method selection, and quality construction execution. Property owners facing foundation problems benefit from engaging experienced professionals who can navigate technical complexities and develop solutions providing lasting value. Though foundation repairs never rank among homeowners’ preferred investments, they preserve and protect properties while ensuring safety for occupants and maintaining building functionality for generations to come.
